SPE9X5VU-Ultra Low Capacitance Single-Line ESD Protection Array  DataSheet
DESCRIPTION
The SPE9X5VU is an ESD transient voltage suppression
component which provides a very high level of protection
for sensitive electronic components that may be subjected
to electrostatic discharge (ESD).
It is particularly well-suited for cellular phones, portable
device, digital cameras, power supplies and many other
portable applications because of its small package and
low weight. The SPE9X5VU is Uni-directional, Safely
dissipate ESD strikes of Level 4, IEC61000-4-2,
exceeding the maximum requirement. Using the
MILSTD-883 (Method 3015) specification for Human
Body Model (HBM) ESD, the device provides protection
for contact discharges to greater than +/-10KV.

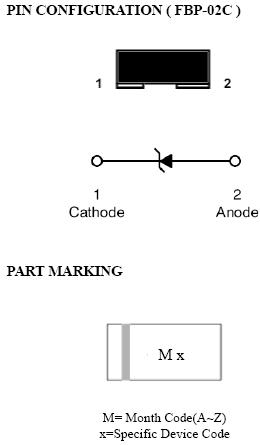

The SPE9X5VU is available in a WBFBP-02C package
with peak reverse working voltage of 5 voltages.
FEATURES
Transient protection for data lines to
IEC 61000-4-2 (ESD)
±15kV (air)
±8kV (contact)
IEC 61000-4-4 (EFT)
40A (5/50ns)
Protects single I/O lines
Working voltage: 5V
Low leakage current
Low operating and clamping voltages
Small Body Outline: 1.0 x 0.6 x 0.5mm
APPLICATIONS
Cellular Handsets and Accessories
Cordless Phone
PDA
Notebooks and Handhelds
Portable Instrumentation
Digital Cameras
MP3 Player
|
