AMC7135--350mA Advanced Current Regulator
Notice: AMC7135PKFAT Typ Iout:320mA Min:300mA Max:340mA
Notice: AMC7135PKFT Typ Iout:360mA Min:340mA Max:380mA

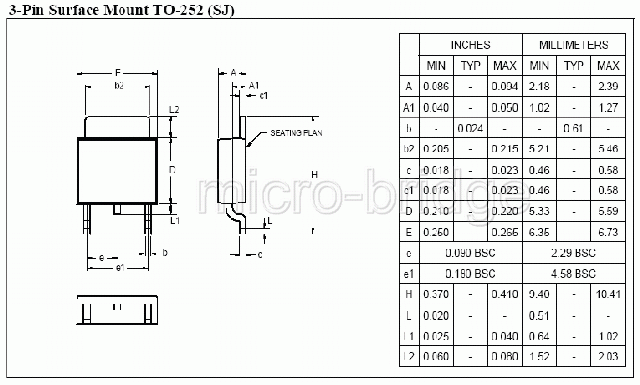

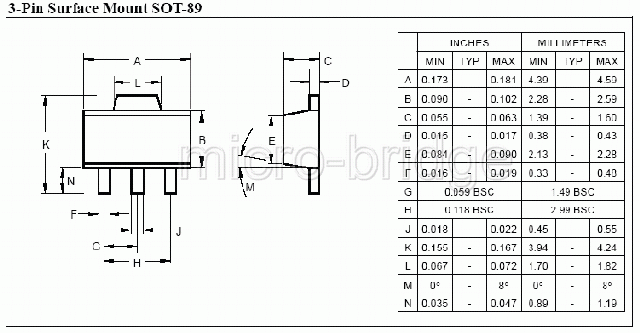

Features ﹡No external component required ﹡350mA constant sink current ﹡Output short / open circuit protection ﹡Low dropout voltage ﹡Low quiescent current ﹡Build-in thermal protection ﹡Supply voltage range 2.7V ~ 6V ﹡2KV HBM ESD protection ﹡Advanced Bi-CMOS process ﹡SOT-89 and TO-252 package (Top View) |
Applications ﹡LED Flashlight Torch(LED手电筒) ﹡LED Miner's Lamp(LED矿灯) ﹡Power LED driver ﹡Lighting |
>>> AMC7135 Data Sheet: |
|
|
Notice: AMC7135PKFAT Typ Iout:320mA Min:300mA Max:340mA |

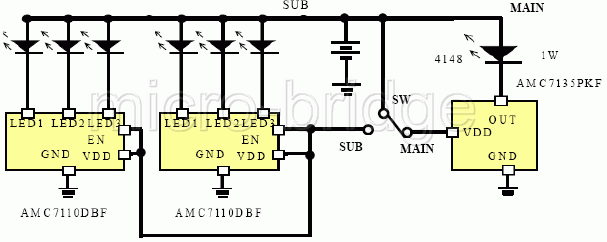

AMC7135 Typical Application Circuit(﹡Cbp=10uF) |
Notice: AMC7135PKFT Typ Iout:360mA Min:340mA Max:380mA |
![](http://www.micro-bridge.com/images/AMC7135.gif) |
![](http://www.micro-bridge.com/images/AMC7135P.gif)
| ![](http://www.addmtek.com/products/image/AMC7135-PACKAGE.gif) |
